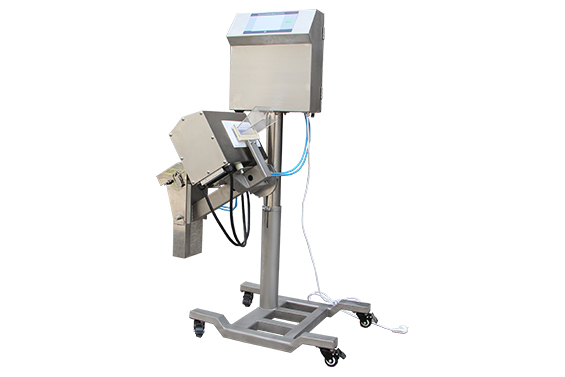

GJ-VIII Pharmaceutical Metal Detector


Parameters

SPECIFICATION



Model

GJ-VIII Pharmaceutical

Aperture Opening Size

100mm Width x 35mm Height

Aperture Passing Size

85mm Width x 20 mm Height

Sensitivity

FeΦ0.5mm, Non-FeΦ0.5mm, SusΦ0.6mm

Product Size

Tablets: thickness of 3 mm or more
Capsules: No. 00 to 5

Control Panel

5.6 inch Colorful Touch Screen

Operation Language

English, Chinese, can customize other language

Alarm Pattern

Automatic Reject System is included

Construction Material

Machine frame is SUS304, all the contact parts with the detected objects is made by SUS316 and hygiene class organic glass

Power Supply

AC110~220V±10%, Single Phase, 50/60 Hz

Air Requirement

0.30.6Mpa

Note:
The above sensitivity is tested by standard testing piece in empty running, while the actual sensitivity with products will depend on the type, shape, composition, status of the products, position of the mixed impurity and environment factors etc.





FEATURES



? Specially used for pharmaceutical product such as tablets, capsules

? Equipped with automatic rejection system, unqualified products will be rejected out automatically

? All the contact parts with the detected objects is made by SUS316 and hygiene class organic glass

? Inlet and outlet height can be adjusted to match the front and rear equipment

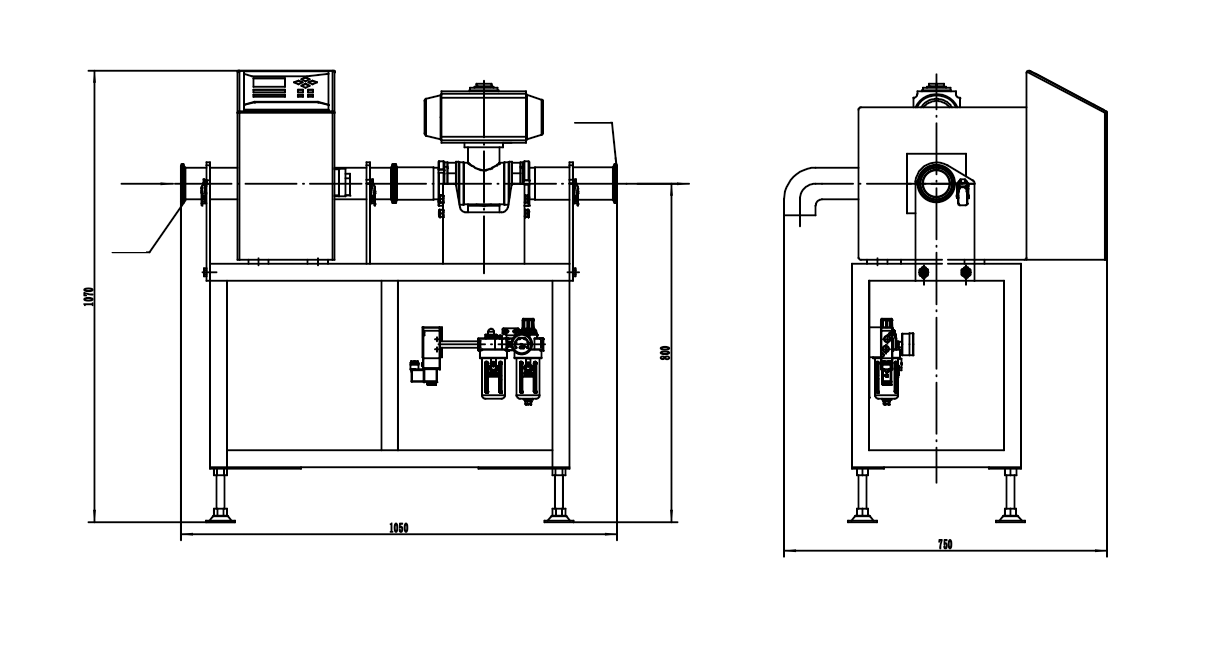

DIMENSION DRAWING

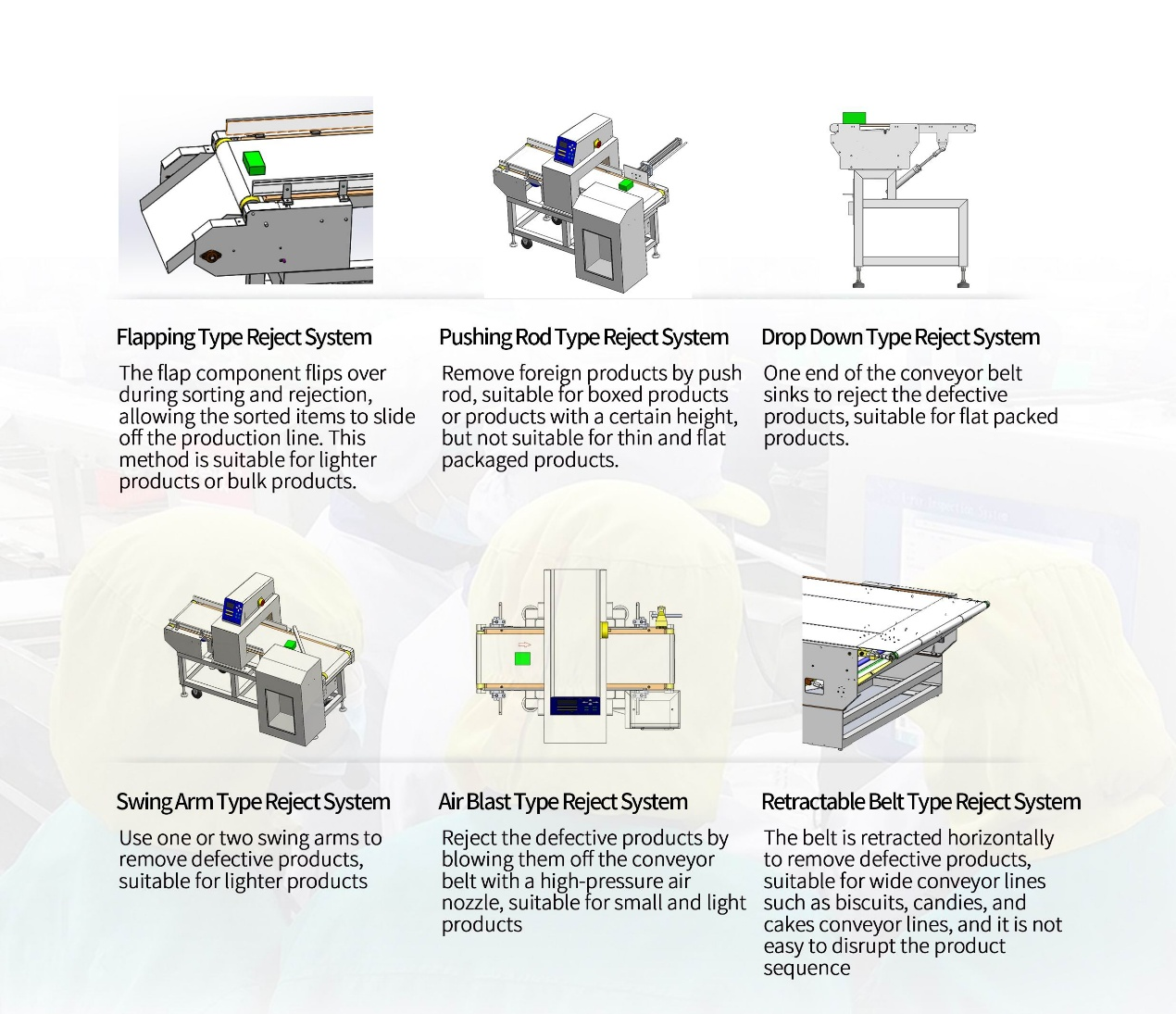

DIFFERENT TYPES OF REJECT SYSTEM

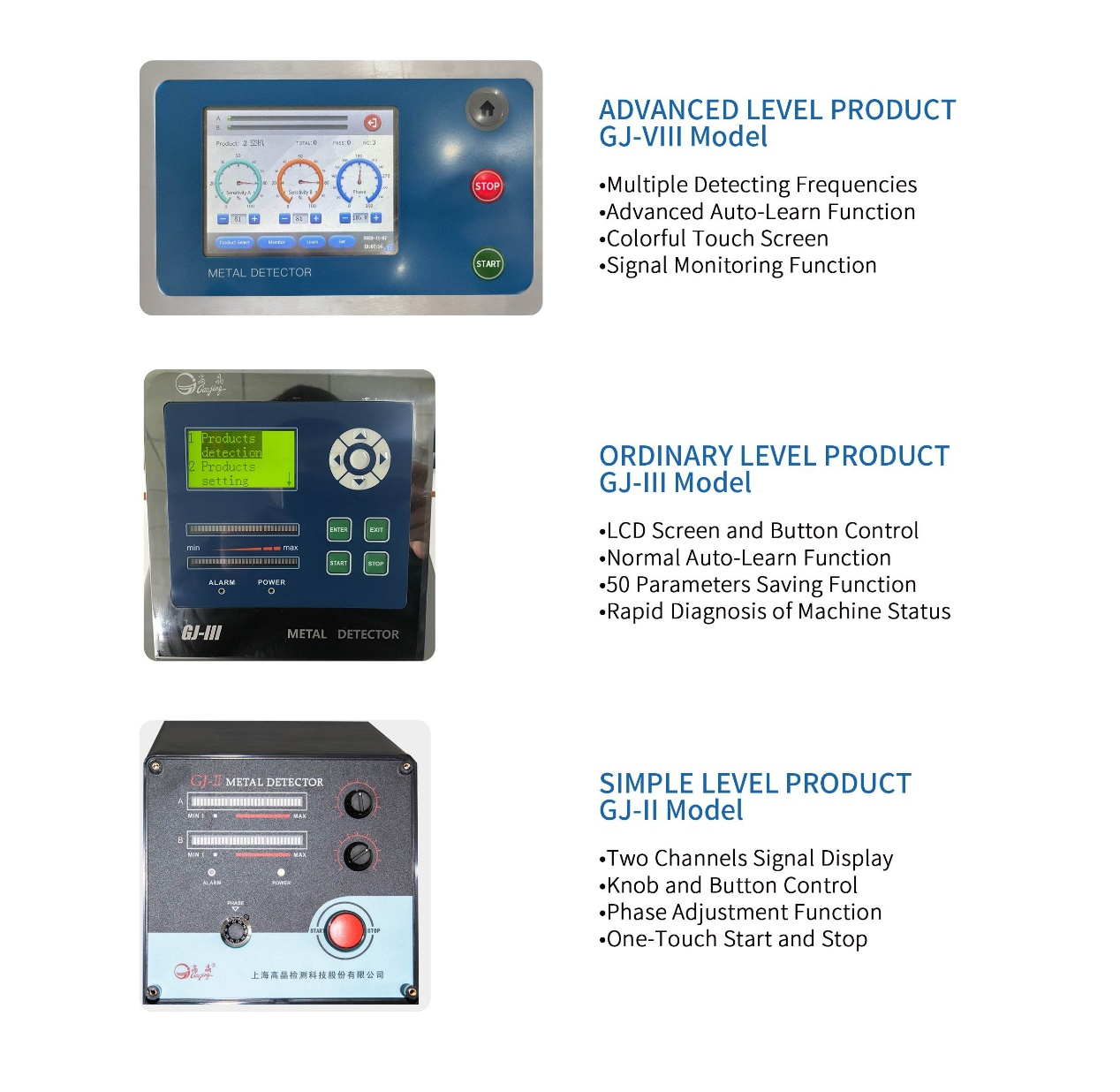

DIFFERENT LEVEL PRODUCTS AVAILABLE

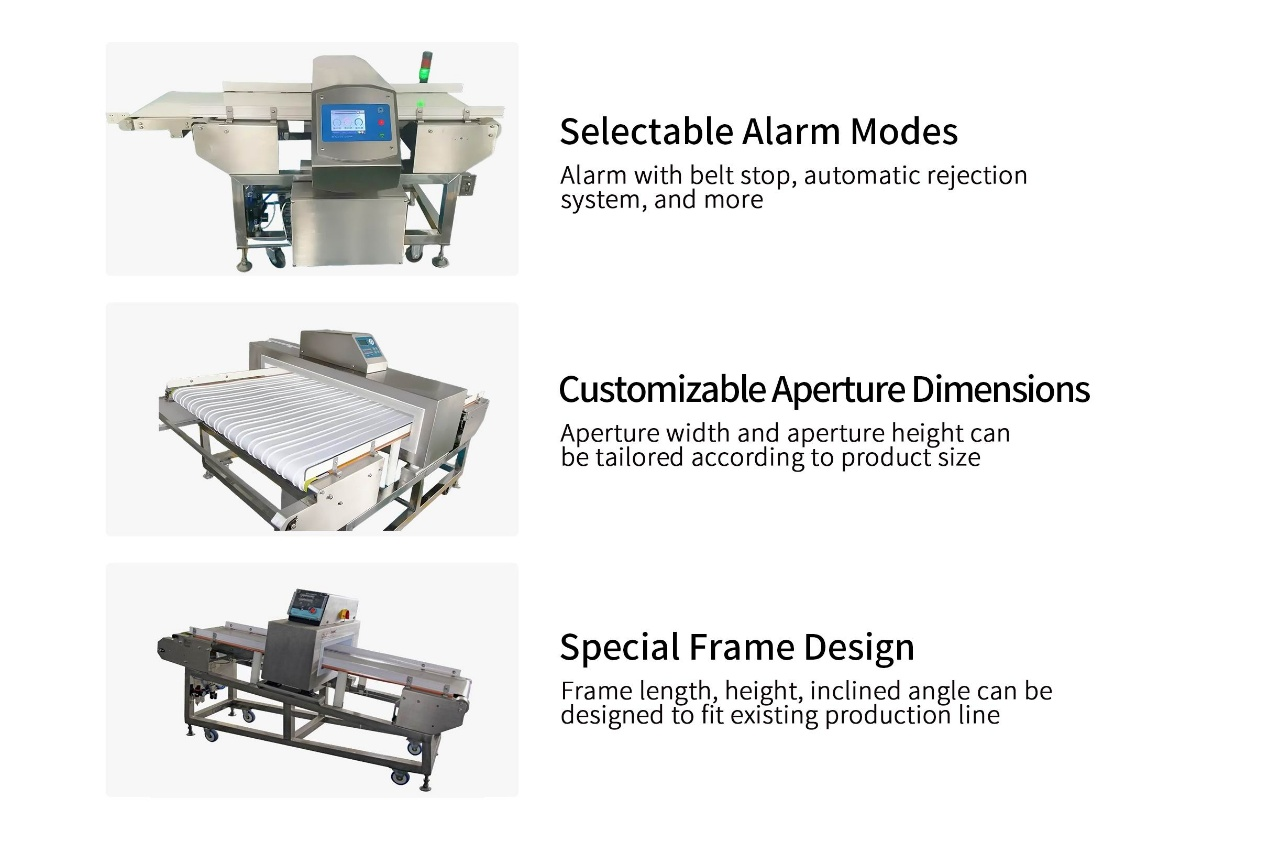

DIVERSIFIED CUSTOMIZATION AVAILABLE

product videos

Product advantages

01

Suitable for detecting metal foreign objects in various powdered, granular, and bulk materials.
